When exporting BTL, BTLx and BVX files, it is possible to specify preferred manufacturing sides for sheet, pocket and slot machining.
Loading...
No content found!

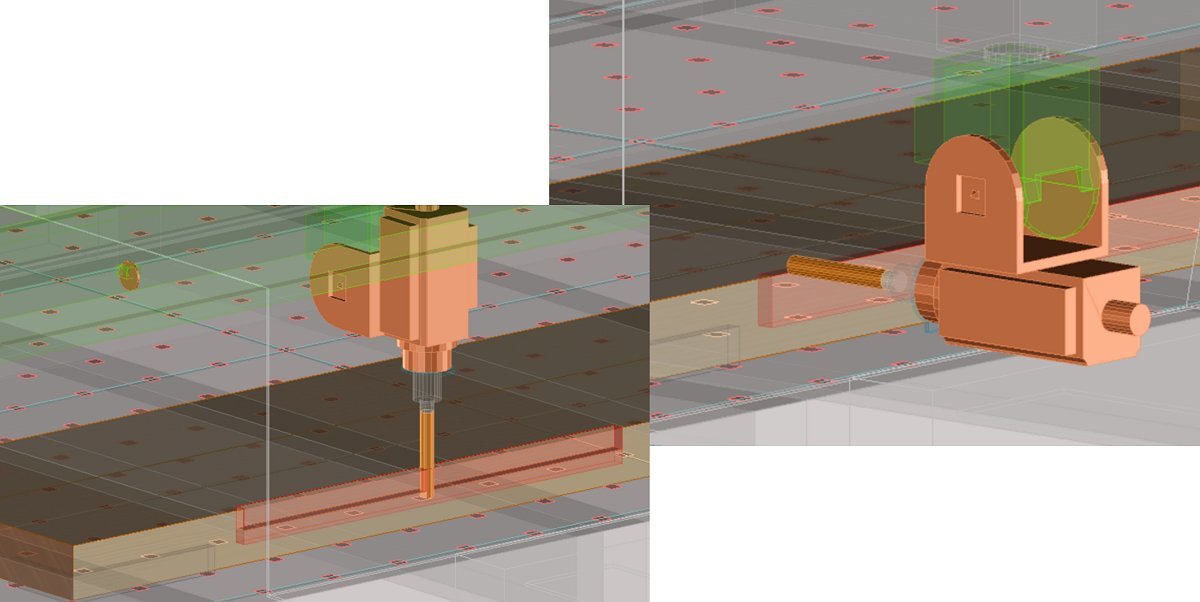

Define preferred production sides for machine export

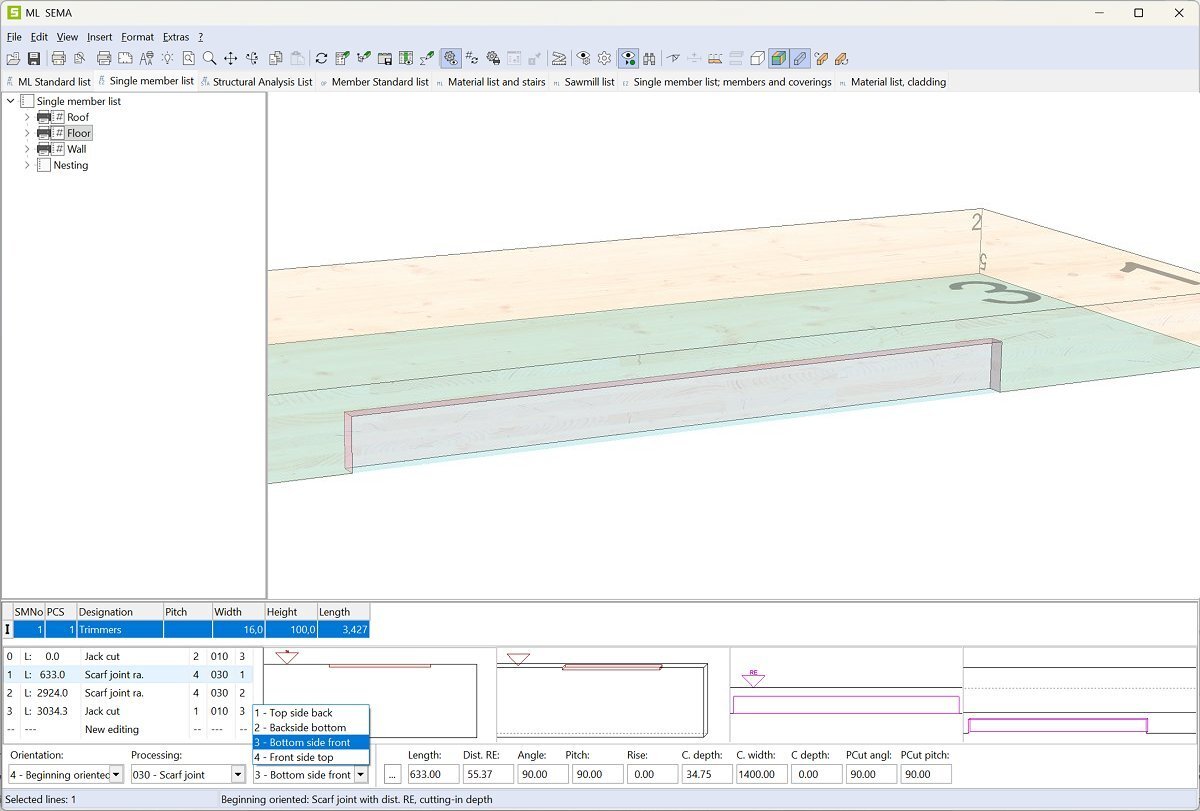

This new setting can be easily selected from the drop-down menu in the single bar when editing is activated. To make it easier to define the manufacturing side, the selected sides of the component are highlighted in colour in the 3D view and marked with the corresponding reference side numbers. This allows you to see at a glance which manufacturing sides are currently selected.
Manufacturing sides that are not possible are displayed as "inactive" and cannot be selected. With the "automatic" setting, the machining operations are exported as before.
In combination with the defined "General machine settings", specific manufacturing steps for special machining on the manufacturing machine can thus be optimised in advance.
